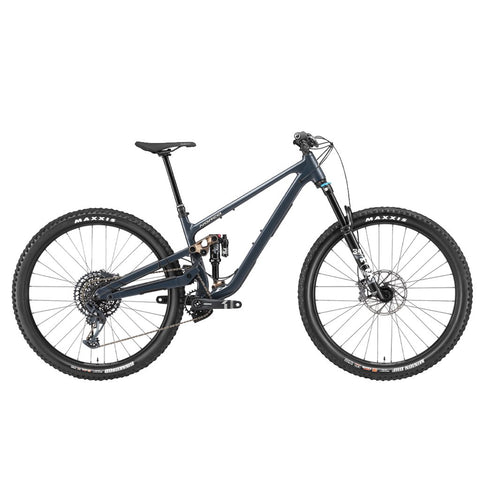

• Optic is that friend who gets you dressed up and on-point for a night out – and the next thing you know, your silk shirt’s got no arms, one of your shoes has gone AWOL, and you’ve traded one of your teeth for a piercing that wasn’t there when you left home. Sure, it’s got a little manic energy, but Optic’s up for a good time, every time - No matter how you define “Trail” riding.
• Terrain-Tailored Suspension: Optic’s High Pivot Horst Link suspension platform provides 125mm net vertical wheel travel through a rearward axle path that absorbs high-speed, square-edge impacts to maintain momentum and control.
• Aluminum Frame: Smooth welded, hydroformed aluminum frame looks like a million bucks, but give you the strength, reliability, and performance you need to focus on the trail in front of you.
• Ride Aligned™: The Ride Aligned™ Design System matches each Optic to the human who rides it with Rider-First geometry and suspension that’s precision tuned in minutes to you and terrain you ride with the Ride Aligned™ Bike Setup Guide.
| Frame | Optic Aluminum, VPS HP, 125mm Travel, UDH Compatible |
| Fork | Fox FLOAT 34 Rhythm, GRIP, 140mm, Sweep Adjust, 44mm Offset |
| Rear Shock | Fox FLOAT X Performance, 2 pos, 185x50mm Trunnion |
| Rear Shifter | SRAM GX Eagle |
| Rear Derailleur | SRAM GX Eagle Lunar |
| Crankset | Truvativ X1 Eagle, 30T, 170mm |
| Bottom Bracket | SRAM DUB BSA Threaded |
| Chain Tensioner | Norco Idler Guide and Lower Guide |
| Cassette | SRAM Eagle XG1275 10-52T |
| Chain | SRAM SX Eagle |
| Front Brake | SRAM Level Stealth Bronze or TRP Slate EVO, 4-Piston |
| Front Brake Rotor | SRAM Centerline 200mm or TRP 2.3mm, 203mm |
| Rear Brake | SRAM Level Stealth Bronze or TRP Slate EVO, 4-Piston |
| Rear Brake Rotor | SRAM Centerline 180mm or TRP 2.3mm, 180mm |
| Brake Levers | SRAM Level Stealth or TRP Slate |
| Handlebar | 6061 Alloy, 800mm, 25mm Rise |
| Stem | Alloy, 40mm Length, 35mm Clamp |
| Seatpost | TranzX YS105 Dropper, 34.9mm, 150mm (1), 170mm (2), 200mm (3, 4), 230mm (5) |
| Headset | FSA #57 E Sealed Bearing |
| Saddle | SDG Bel Air V3 |
| Grips | Ergon GD1 Lock On |
| Seatpost Clamp | Norco Alloy Nutted Clamp |
| Front Hub | Race Face Trace, 15x110mm Boost, 6-Bolt |
| Rear Hub | Race Face Trace, 12x148mm Boost, XD, 6-Bolt |
| Rims | Stan's Flow D, Black 32H |
| Front Tire | Maxxis Minion DHF 2.5" 3C, MaxxTerra / EXO / TR, Folding |
| Rear Tire | Maxxis Dissector 2.4" 3C, MaxxTerra / EXO / TR, Folding |
| Spokes/Nipples | Black Stainless |
| Valves | Stan's Universal 35mm Presta Stem |
| Sealant | Stan's Sealant - 200ml |
| Rim Tape | Stans Rim Tape 55m x 30mm |
| Weight | 17.2 kg (37.9 lbs) |
| Weight Size | S3 |
