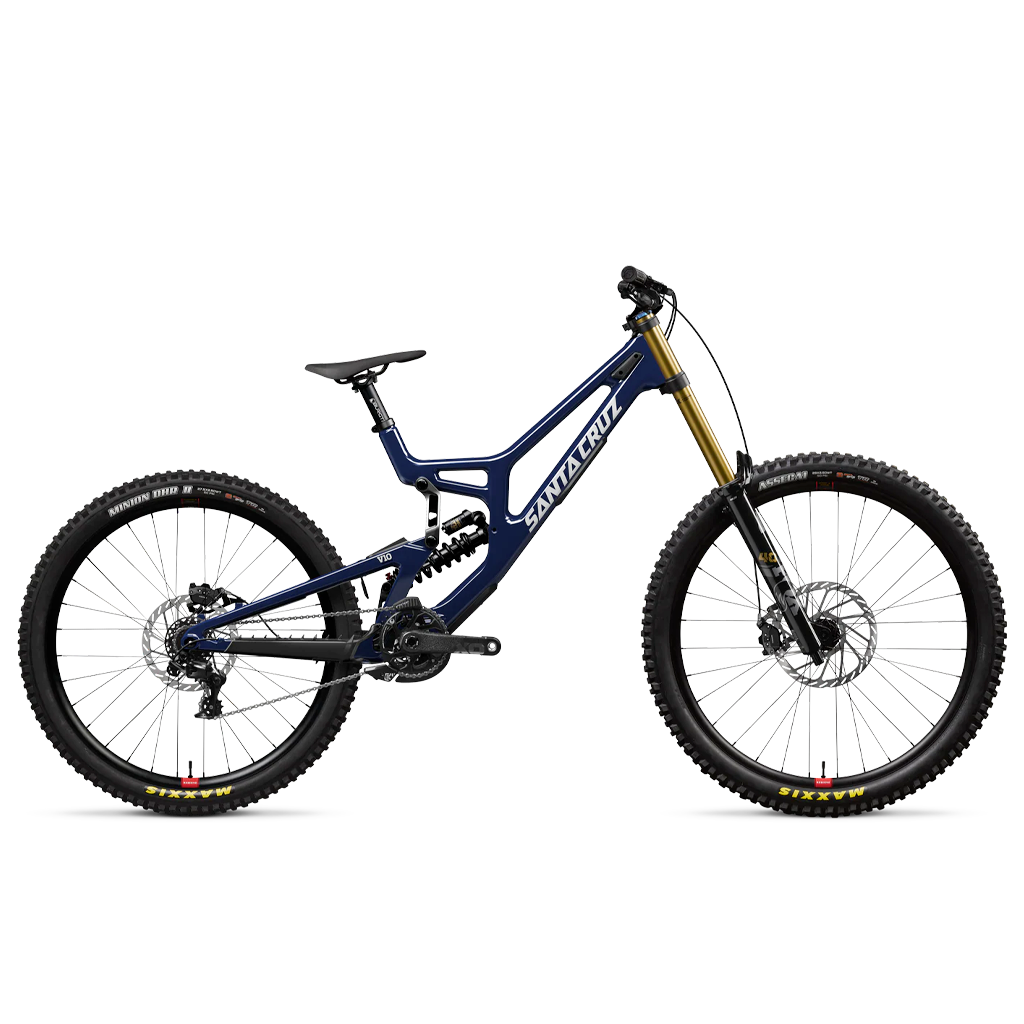

The Santa Cruz V10 8 CC DH X01 is a downhill mountain bike with a Carbon CC frame and 208 mm of VPP rear travel.
This build uses a 203 mm FOX 40 Float Factory fork, FOX DHX2 Factory coil shock and SRAM X01 DH 7-speed drivetrain.
Warranty and bearings
Manufacturer lifetime warranty. Santa Cruz provides free replacement pivot bearings to the original owner for as long as they own the bike.
Technical specifications
Frame
| Component |
Specification |
| Material |
Carbon CC |
| Frame |
Carbon CC MX 208mm Travel VPP™ |
| Travel |
208mm |
| Wheel Size |
MX/29" |
Suspension
| Component |
Specification |
| Fork |
FOX 40 Float Factory, Grip X2, 203mm |
| Shock |
Fox DHX2 Factory S: 450lb, M: 500lb, L: 550lb, XL: 600lb |
Cockpit
| Component |
Specification |
| Grips / Bar Tape |
Burgtec Bartender Pro Grip |
| Handlebars |
OneUp Aluminum Bar, 35mm (Size S: Burgtec RW Alloy DH Bar, 31.8) S: 800mm, 15mm Rise, M/L/XL: 800mm, 35mm Rise |
| Headset |
Cane Creek 50 IS41 Headset 1-1/8" |
| Saddle |
Fizik Alpaca Gravita X5 Saddle |
| Seatpost |
Burgtec Aluminum Post, 31.6 All Sizes: 300mm |
| Stem |
OneUp Direct Mount Stem |
| Headset |
IS41 upper/ IS41 lower (Reach Adjust) |
Drivetrain
| Component |
Specification |
| Bottom Bracket |
SRAM DUB 83mm Threaded BB |
| Chain |
SRAM PC1170, 11spd |
| Chainguide |
E13 LG1+ Chainguide |
| Crankset |
SRAM X01 DH, DUB 83, 36t All Sizes: 165mm |
| Rear Derailleur |
SRAM X01 DH, 7spd |
| Right Shifter |
SRAM X01 DH |
Brakes
| Component |
Specification |
| Brakes |
SRAM Maven Silver |
| Front Rotor |
SRAM HS2 220mm |
| Rear Rotor |
SRAM HS2 200mm |
Wheels
| Component |
Specification |
| Front Rim |
Reserve 30|HD AL 6069 |
| Front Hub |
Industry Nine 1/1, 20x110 Boost, 32h -or- DT Swiss 350, 20x110 Boost, 32h |
| Front Tire |
Maxxis Assegai 29"x2.5", 3C MaxxGrip, DH |
| Rear Rim |
Reserve 30|HD AL 6069 |
| Rear Hub |
Industry Nine 1/1, 12x157, XD, 32h -or- DT Swiss 350, DEG DF, 12x157, XD, 32h |
| Rear Tire |
Maxxis Minion DHR II 27.5"x2.5", 3C MaxxGrip, DH |
| Valves |
Reserve Fillmore Valves |
Frame specifications
| Component |
Specification |
| Bottom Bracket Shell |
Threaded 83mm |
| Rear Brake Mount |
200mm or 220mm PM |
| Chainguide Standard |
ISCG05 |
| Shock Length |
250mm |
| Fork Offset |
52mm |
| Front Derailleur Mount |
None |
| Max Chainring Size |
36t |
| Max Rotor Size |
220mm |
| Max Tire Clearance May vary according to tire and rim model |
2.5" |
| Rear Spacing |
157mm |
| Rear Travel |
208mm |
| Recommended Sag |
30% |
| Seat Clamp Diameter |
36.4mm |
| Shock Bushing Size Front |
30x8 |
| Shock Bushing Size Rear |
30x8 |
| Shock Stroke |
75mm |
| Suspension System |
VPP |
Weight
| Component |
Specification |
| Weight |
37.10 lbs / 16.83 kg |
Other specifications
| Component |
Specification |
| Cassette |
SRAM X01 DH, 7spd |
Size guide
| Frame size |
Rider height / reach |
| S |
5′1″–5′6″ | Reach: 412–425 mm |
| M |
5′5″–5′9″ | Reach: 447–467 mm |
| L |
5′8″–6′1″ | Reach: 467–480 mm |
| XL |
6′0″–6′5″ | Reach: 492–505 mm |
Specifications are subject to change without notice and may differ from the photos.
Assembly and shipping
Assembled by our certified mechanics, in our workshop. Online orders ship 90% assembled.
