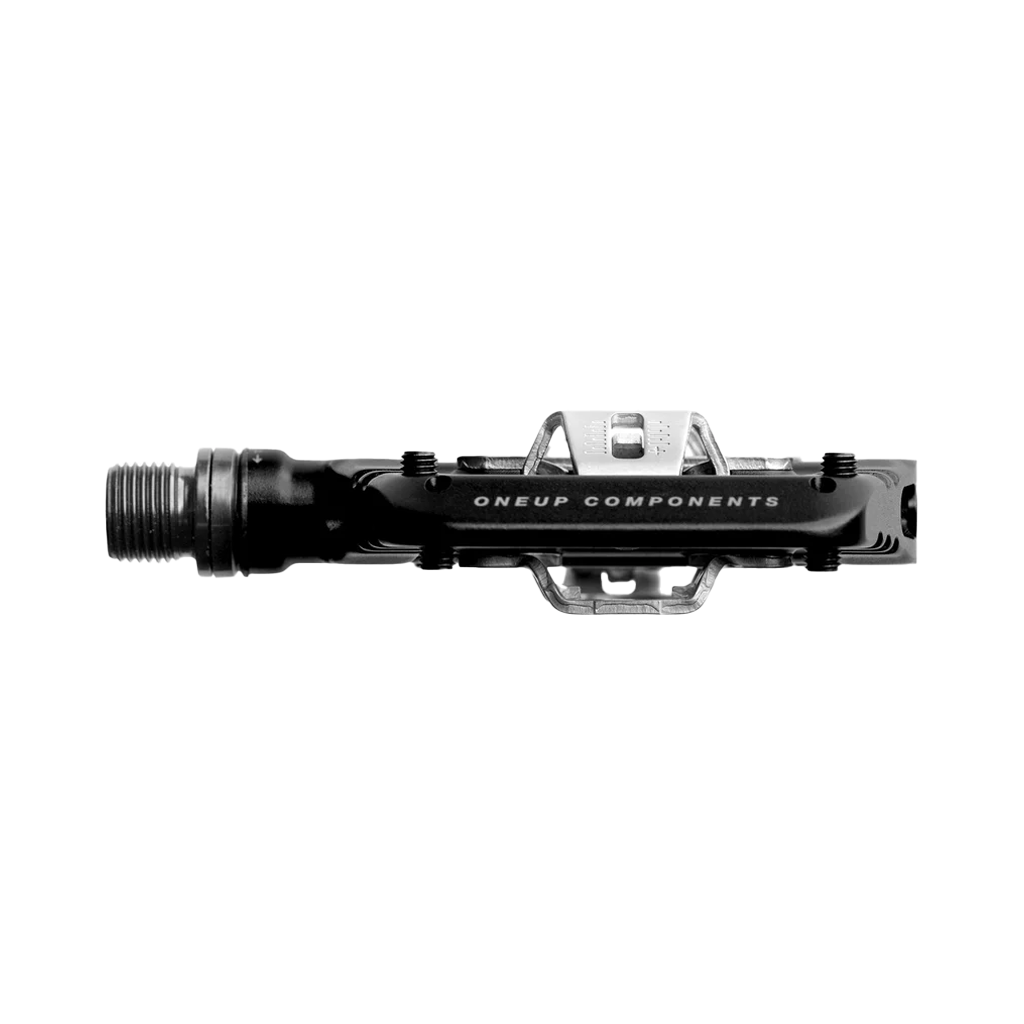

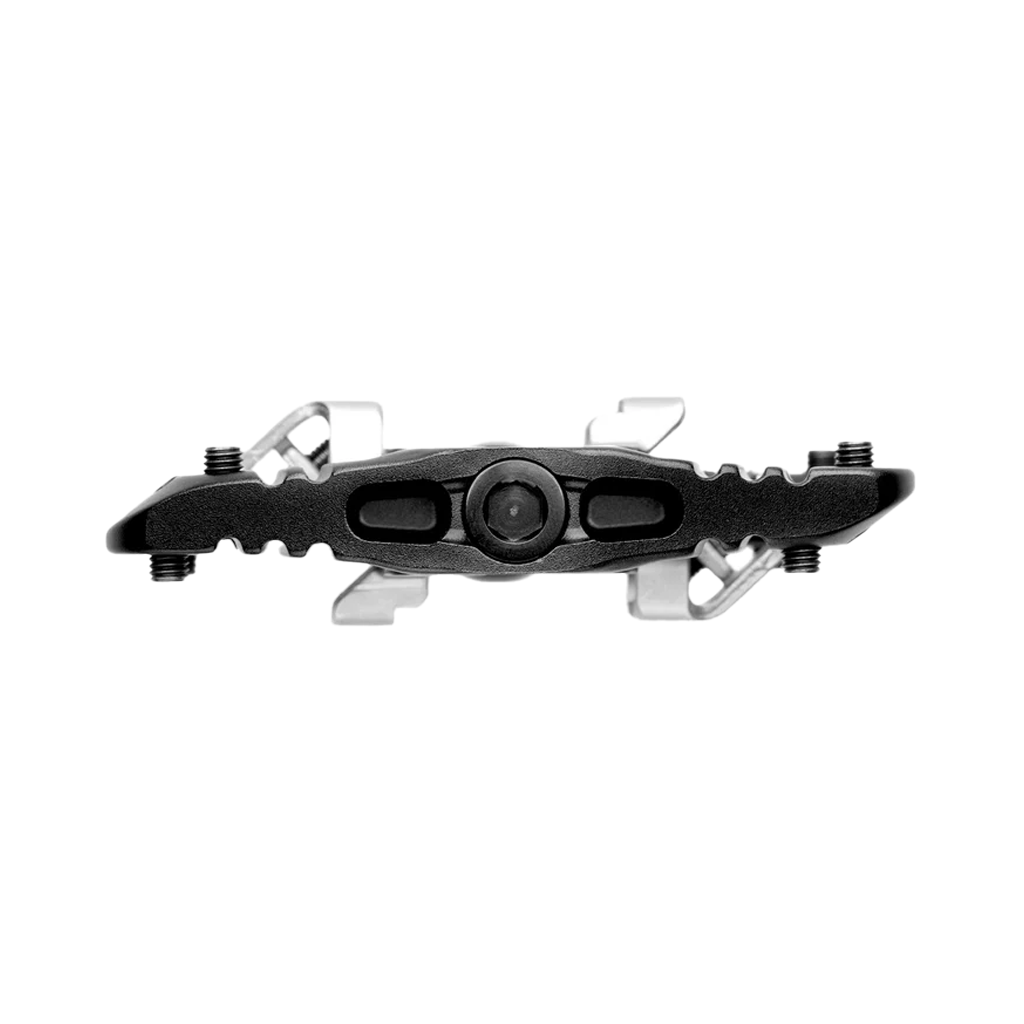

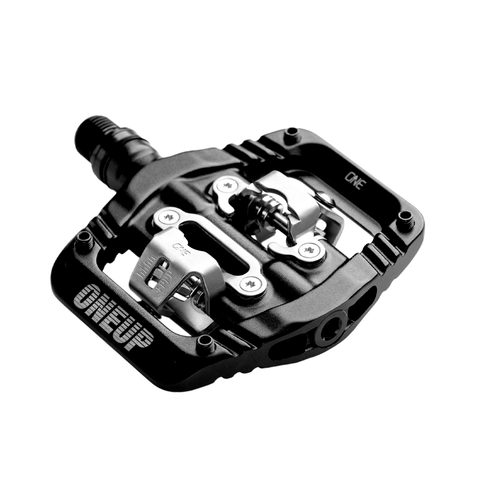

Clip-in pedals OneUp Clip: an SPD-compatible binding with 5° float and a 12° release.
Technical specifications
| Feature | Specification |
|---|---|
| Colour | Black |
| Body | Thin alloy body |
| Cleat system | SPD compatible |
| Binding | Stainless steel |
| Angular float | 5° |
| Release angle | 12° |
| Platform | 80 × 90 mm |
| Thickness | 14.4 mm body / 26.8 mm binding |
| Stance reference | 57.5 mm from binding centre to outside crank face |
| Pins | 4 per side, removable M5 × 8 mm hollow threaded pins |

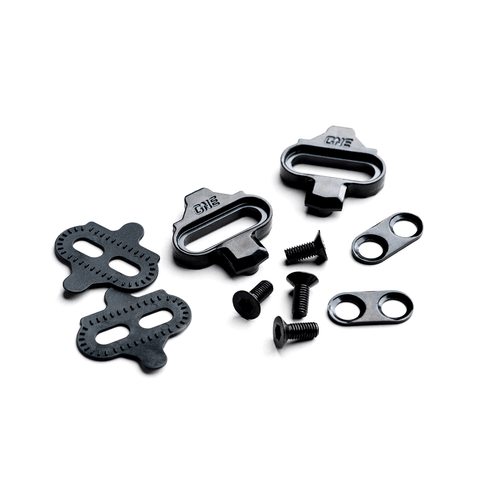

| Cleats included | OneUp SPD-compatible cleats with 1 mm spacers |
| Tension | Adjustable engagement / release tension |
| Bearings | Inboard igus bushing; 3 outboard sealed cartridge bearings |
| Axle | Chromoly steel with black ED coating |
| Listed weight | 410 g with pins |
