E-Bike Pivot Shuttle LT Ride 70/90 Gen5 CX - Stone Cold White

SKU: 210000040537
$9,999.95
$11,999.95
$9,999.95
Size: M
E-Bike Pivot Shuttle LT Ride 70/90 Gen5 CX - Stone Cold White - Genetik Sport

E-Bike Pivot Shuttle LT Ride 70/90 Gen5 CX - Stone Cold White

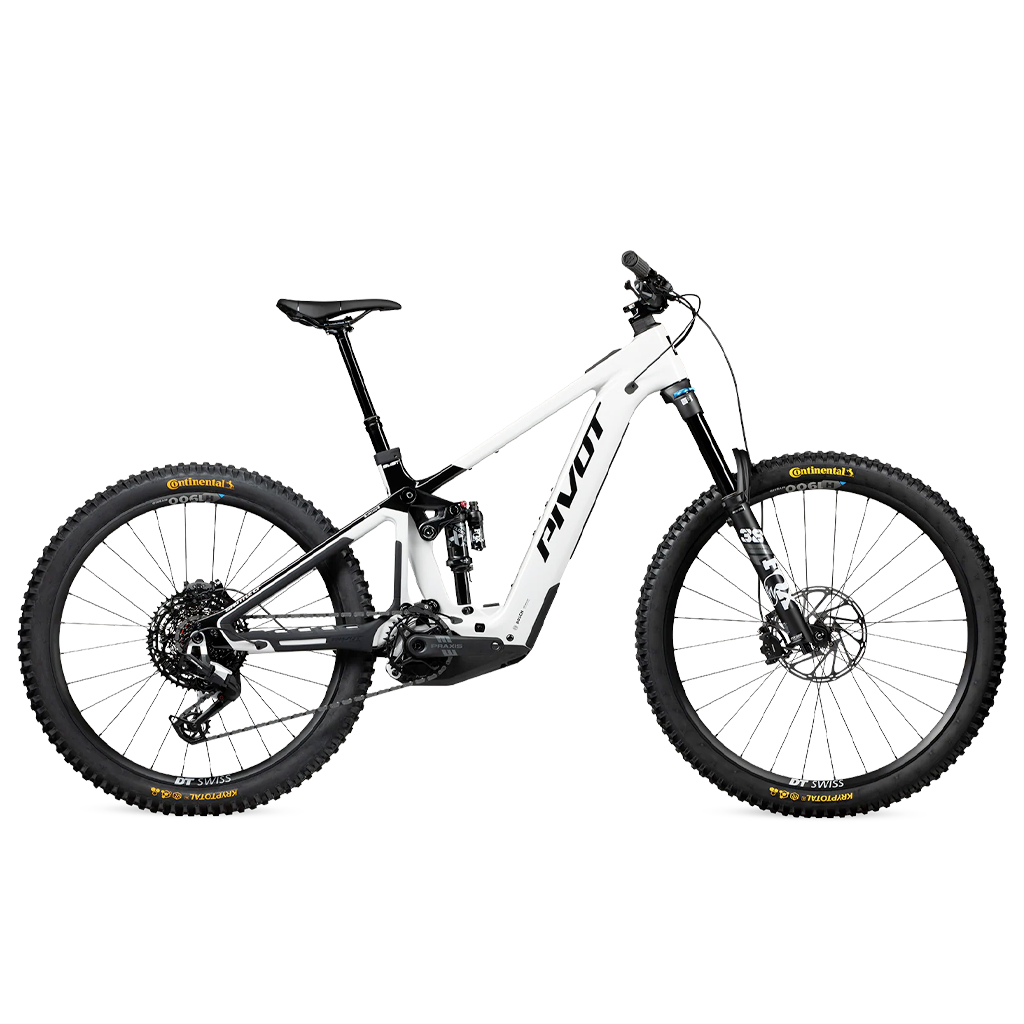

The Pivot Shuttle LT Ride Eagle 70/90 combines a Hollow Core carbon frame, Bosch Performance Line CX Gen 5 motor and 800 Wh battery. It uses mixed wheels, a 170 mm FOX 38 Performance fork and a Float X Performance shock.

Rear travel is 162 mm in the short chainstay setting and 165 mm in the long setting. The Ride build uses mechanical Eagle 90 shifting and Maven four-piston brakes.

Technical specifications

Component Specification
Fork FOX Performance 38 29, GRIP, 170mm, 44mm offset
Rear Shock FOX Performance Float X
Headset Pivot Precision Sealed Cartridge
Rear Derailleur SRAM Eagle 90 Mechanical Transmission 12-Speed
Cassette SRAM XS-1270 Eagle Transmission 10-52t
Shifter SRAM Eagle 90 Mechanical Transmission 12-Speed
Brakes SRAM Maven 4-piston
Crankset Praxis Alloy eCranks E-MTB 34t - 155mm
Handlebar Phoenix Ride Aluminum | 20mm Rise 780mm (SM) | 35mm Rise 780mm (MD-XL)
Grips Phoenix Factory Lock-On
Stem Phoenix Team Enduro V2 | 40mm (SM-LG), 50mm (XL)
Seatpost JD/PIVOT YSP23GLS | 150mm (SM), 170mm (MD), 200mm (LG-XL)
Saddle Pivot Ride E-Bike
Drive unit / battery Bosch Gen 5 Performance Line CX | 800Wh
Wheels DT Swiss H1900 | DT Swiss 370 | 30mm | MX | 15x110 front / 12x157 rear
Front tire Continental Kryptotal-F 29 x 2.4 | SuperSoft | Enduro
Rear tire Continental Kryptotal-R 27.5 x 2.6 | Soft | Enduro
Front / rear rotors SRAM Centerline Centerlock | 200mm / 200mm
Chain SRAM Eagle 70 Flattop 12-Speed
Frame Shuttle LT | Hollow Core Carbon

Product Details

  • Hollow Core carbon frame
  • Featuring Bosch’s Gen 5 Performance Line CX (Ride)
  • Long-range 800Wh battery on all build levels
  • Bosch 250wh PowerMore range extender compatible
  • 170mm fork
  • 162mm of progressive rear travel in the short chainstay setting or 165mm in the long
  • Patent pending Slacky McSteepTube(TM) adjustable seat tube angle
  • Geo flip chip via upper link mount
  • Progression flip chip via lower shock mount
  • Mixed-wheel setup
  • Pivot Dock Tool system compatible
  • Water bottle clearance on all sizes
  • Injection molded rubberized frame protection
  • Full internal routing with Pivot cable port system

Size Guide

Size Rider height (cm) Rider height (ft and in)
SM 163–175 cm 5′ 4″–5′ 9″
MD 175–183 cm 5′ 9″–6′ 0″
LG 180–193 cm 5′ 11″–6′ 4″
XL 188–201 cm 6′ 2″–6′ 7″

Centimetre values are rounded.
