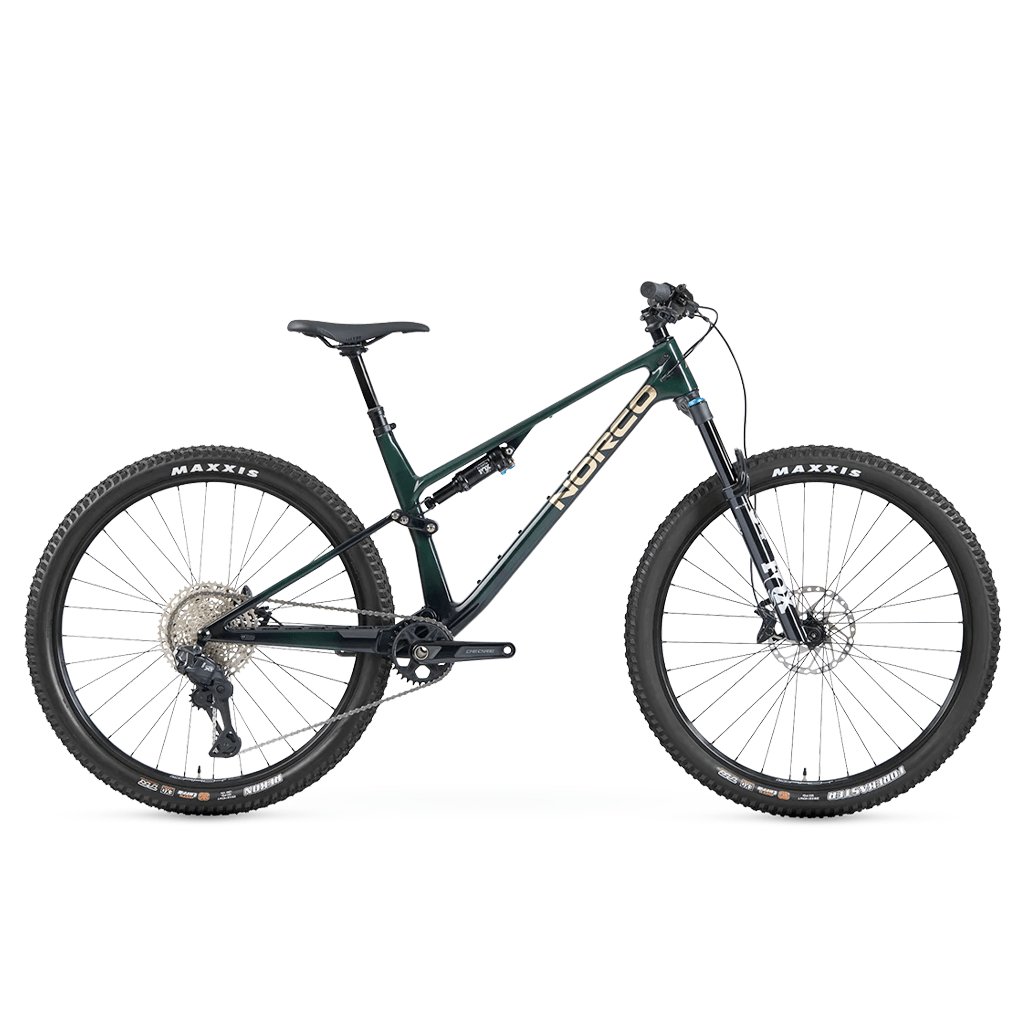

Bike Norco Revolver FS C2 130 - Raw Shore Green
Efficient where it counts, aggressive where it matters.
The Revolver C2 130 is the lightest and most capable full-suspension frame Norco has ever built. At the core of its efficiency is our advanced approach to the Flex-Pivot design, letting us get improved performance out of the lightweight inline shocks we’re spec'ing that would typically be reserved for heavier and larger volume air shocks. With modern, aggressive XC geometry, consistant weight distribution across sizes, and a carbon frame layup optimized per frame size for stiffness and compliance, it’s a strong foundation for driving up and charging down.
Details
Technicals Specs
| Frame |
Carbon Frame, 120mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™ |
| Fork |
Fox 34SL Performance Float, Grip, 130mm, 44mm offset |
| Rear Shock |
Fox Float SL Performance, 190x45mm, standard |
| Rear Shifter |
Shimano Deore XT Di2 SW-M8250-IR, 12sp |
| Rear Derailleur |
Shimano Deore XT Di2 RD-M8250, 12sp, SGS |
| Crankset |
Shimano Deore FC-M6120, 32T, CL55, 165mm (S1) 170mm (S2,S3) 175mm (S4,S5) |
| Bottom Bracket |
Shimano BB-MT501, BSA 73mm |
| Cassette |
Shimano Deore CS-M6100-12, 10-51T, 12sp |
| Chain |
Shimano Deore CN-M6100-12, 12sp |
| Front Brake |
Shimano Deore MT520, 4-Piston, Metallic Pads |
| Front Brake Rotor |
Shimano SM-RT64, 180mm, C-lock |
| Rear Brake |
Shimano Deore MT520, 4-Piston, Metallic Pads |
| Rear Brake Rotor |
Shimano SM-RT64, 180mm, C-lock |
| Brake Levers |
Shimano Deore MT501 |
| Handlebar |
Norco 6061, 760 (S1,S2,S3) 780mm (S4,S5), 20mm rise |
| Stem |
Norco 6061, 50mm, 35mm Clamp |
| Seatpost |
TranzX YSI36, 31.6mm, 120mm (S1, S2) -150mm (S3) -170mm (S4) - 200mm (S5) |
| Headset |
FSA No 42/48ACB Integrated Headset, Tapered 1-1/8" - 1.5" |
| Saddle |
WTB Silverado Medium |
| Grips |
WTB Wavelength |
| Seatpost Clamp |
Norco bolted, 34.9mm ID |
| Front Hub |
Shimano Deore HB-TC500, 15x110mm Boost, 32H, C-lock |
| Rear Hub |
Shimano Deore FH-TC500, 12x148 Boost, Micro Spline, 32H, C-lock |
| Rims |
Stans Arch D, 28mm ID, 32H, 29" |
| Front Tire |
Maxxis Forekaster, 3C MaxxTerra EXO, 29x2.40" |
| Rear Tire |
Maxxis Rekon, 3C MaxxTerra EXO, 29x2.40" |
| Rear Hub Skewer |
148mm x 12mm TA, L174, TL13, M12x1.4 |
| Spokes/Nipples |
Stainless steel |
| Valves |
Stans tubeless valves |
| Sealant |
Stans 250ml sealant |
